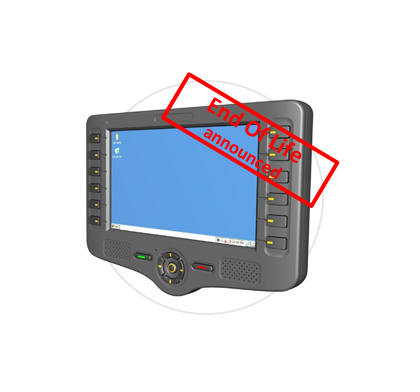

CE-307

The CE-307 provides Original Equipment Manufacturers (OEMs) and Telematics Service Providers (TSP’s) with a rugged and versatile vehicle-centric mobile-computing platform for a variety of Mobile Resource Management (MRM) applications.

The platform features Microsoft Windows Embedded CE 6 operating system that supports Compact Framework 3.5 and offers comprehensive development environment for independent application programming and system integration.

The CE-307 device architecture provides a solid and cost-effective design by simplifying maintenance tasks, significantly extending product life expectancy, and lowing a total cost of ownership (TCO).

The CE-307 Base Model configuration is the standard set of features and functions of the MDT. There is a range of optional Extensions, add-ons and Accessories to enhance the CE-307 capabilities, serving advanced fleet management solutions.

The CE-307 is built to withstand the rough commercial automotive environment, including operation in a wide temperature range, vibration, shock, and endure the rough working environment for many years.

Operation Model

  • Fixed-mount

Operating System

  • Microsoft Windows Embedded CE 6
  • Core/Professional License

Display

  • 7” WVGA (800 X 480)
  • Resistive Touch screen

Processor

  • TI Omap 3503, 600 MHz
  • ARM Cortex™ – A8

RAM

  • 256MB

ROM

  • 512MB
  • SD Card Slot – Up to 32GB

Peripheral Interfaces

  • RS-232, USB OTG, USB Host
  • Digital/Analog I/O

Wireless Interfaces

  • WiFi, Bluetooth



Power

  • Direct Vehicle Battery connection (12V/24V)

Environmental

  • Temperature ranges –
    • Operating: -4 °F to +158 °F (-20 °C to +70 °C)
    • Storage: -22 °F to +176 °F (-30 °C to +80 °C)
  • Humidity – 95% ±5%RH, +40°C, non-condensing
  • IP – IP54

Certifications

  • FCC, CE, RoHS
