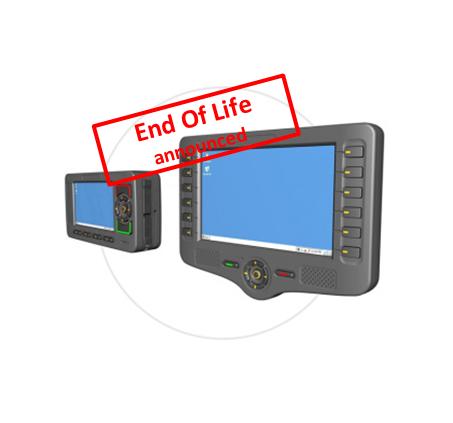

CE-500

The CE-500 provides OEMs (Original Equipment Manufacturers) and Telematics ASPs (Application Service Providers) with a rugged, versatile, vehicle-centric, and fixed-mount or portable mobile-computing platform for a variety of MRM (Mobile Resource Management) applications.

The platform features Microsoft Windows Embedded CE 6.0 operating system, supporting Compact Framework 3.5, and offers a comprehensive development environment for independent application programming and system integration.

Its unique layered architecture makes the CE-500 highly modular and scalable, allowing for variable factory-set configurations by using plug-in modules.

This future proof and cost effective design: simplifies maintenance tasks, significantly extends product life expectancy, and lowers TCO (total cost of ownership).

The CE-504 Base configuration and the CE507 Base configuration are the standard set of features and functions of the MDT. There is a range of optional Extensions, add-ons and Accessories to further enhance the CE-500 capabilities to serve advanced fleet management solutions.

The CE-500 is built to withstand a wide temperature range, vibrations, shock, and endure the rough working conditions in the commercial vehicle environment.

Operation Model

  • Fixed/Portable with In-Cab Cradle

Operating System

  • Microsoft Windows Embedded CE 6
  • Core/Professional License

Display

  • 7” WVGA (800 X 480)
  • 4”, WQVGA (480 X 272)
  • Resistive Touch screen

Processor

  • TI Omap 3503, 600 MHz
  • ARM Cortex™ – A8

RAM

  • 256MB

ROM

  • 512MB
  • SD Card Slot – Up to 32GB

Peripheral Interfaces

  • RS-232, USB OTG, USB Host
  • Digital/Analog I/O
  • Vehicle BUS connectivity

Wireless Interfaces

  • WiFi, Bluetooth

Integrated Cellular and GPS

  • 3.5G
  • GPS

Power (through the device’s cradle or main interface cable)

  • Direct Vehicle Battery connection (12V/24V)

Environmental

  • Temperature ranges –
    • Operating: -4 °F to +158 °F (-20 °C to +70 °C)
    • Storage: -22 °F to +176 °F (-30 °C to +80 °C)
  • Humidity – 95% ±5%RH, +40°C, non-condensing
  • IP – IP65 (Device)

Certifications

  • FCC, CE, RoHS

Download CE-500 Datasheet
